Product description
|
|

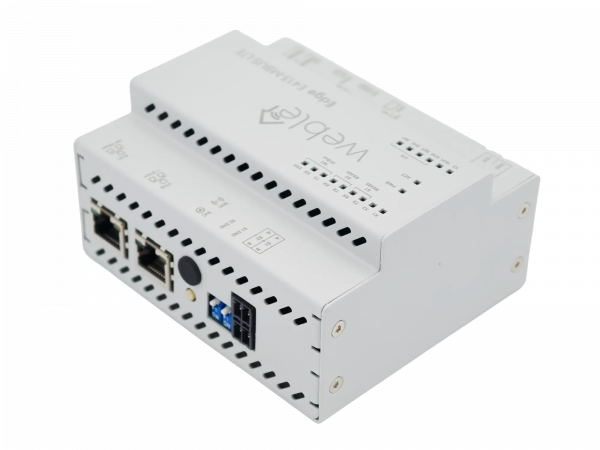

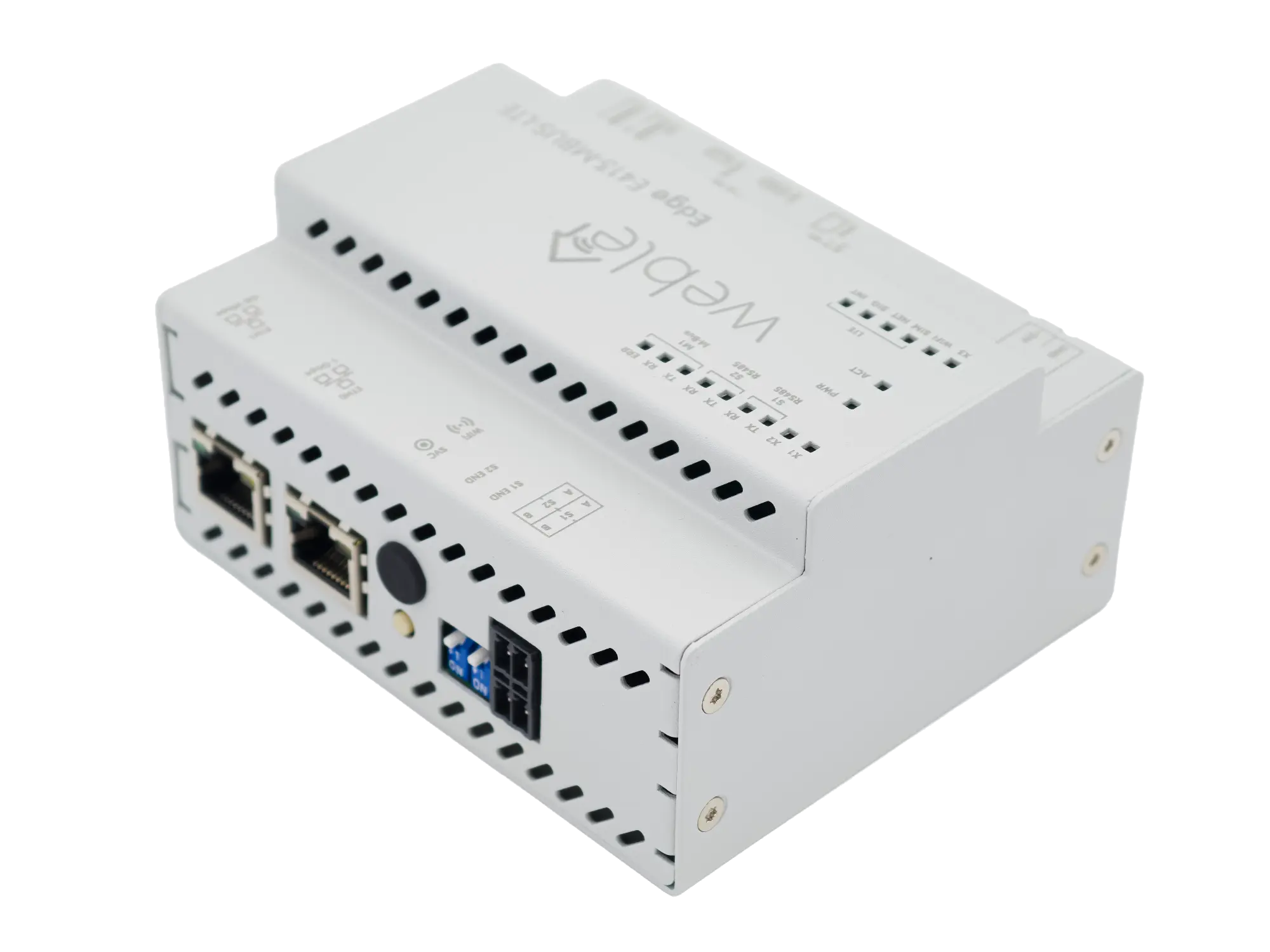

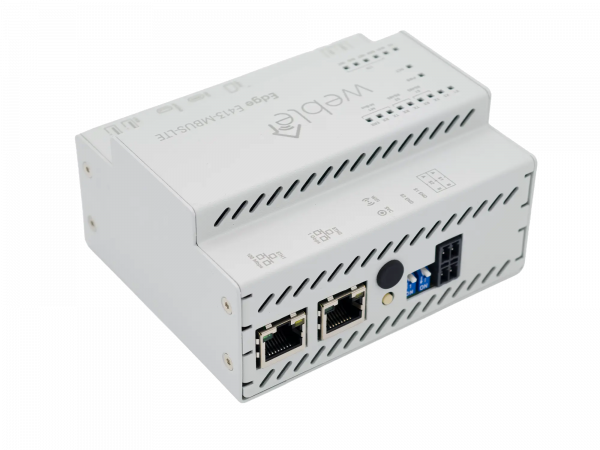

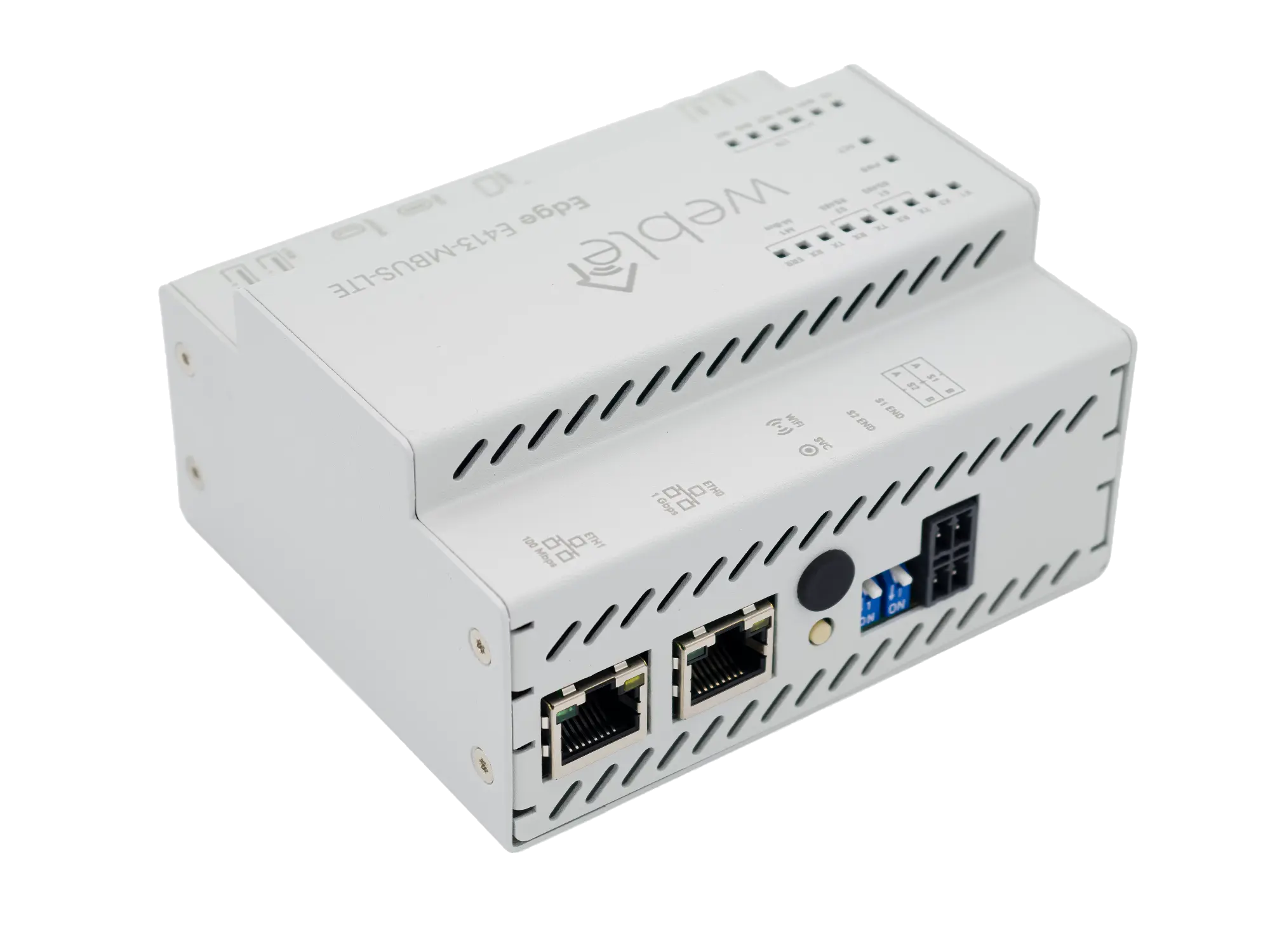

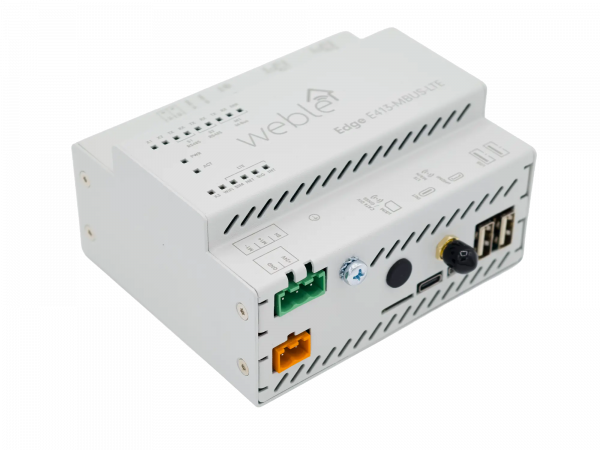

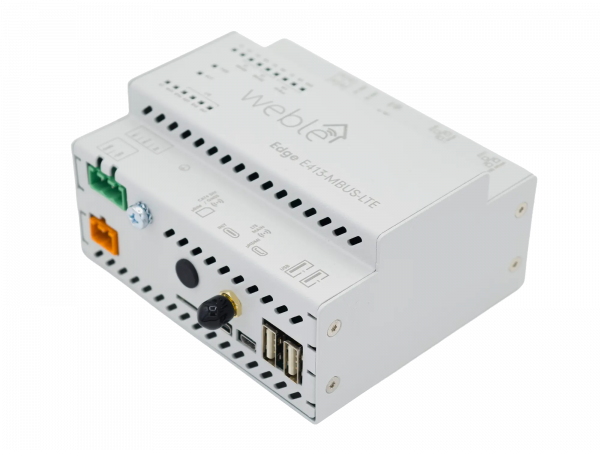

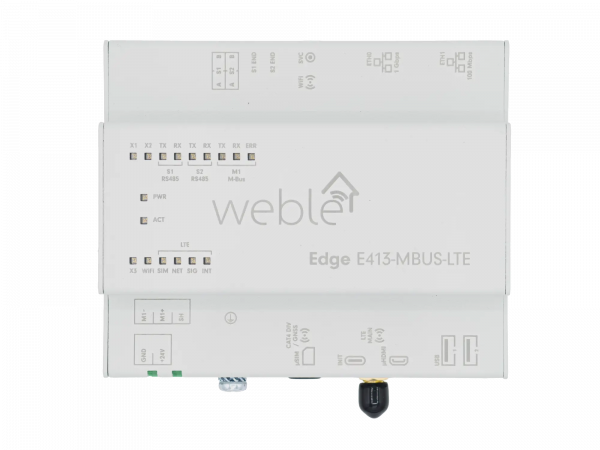

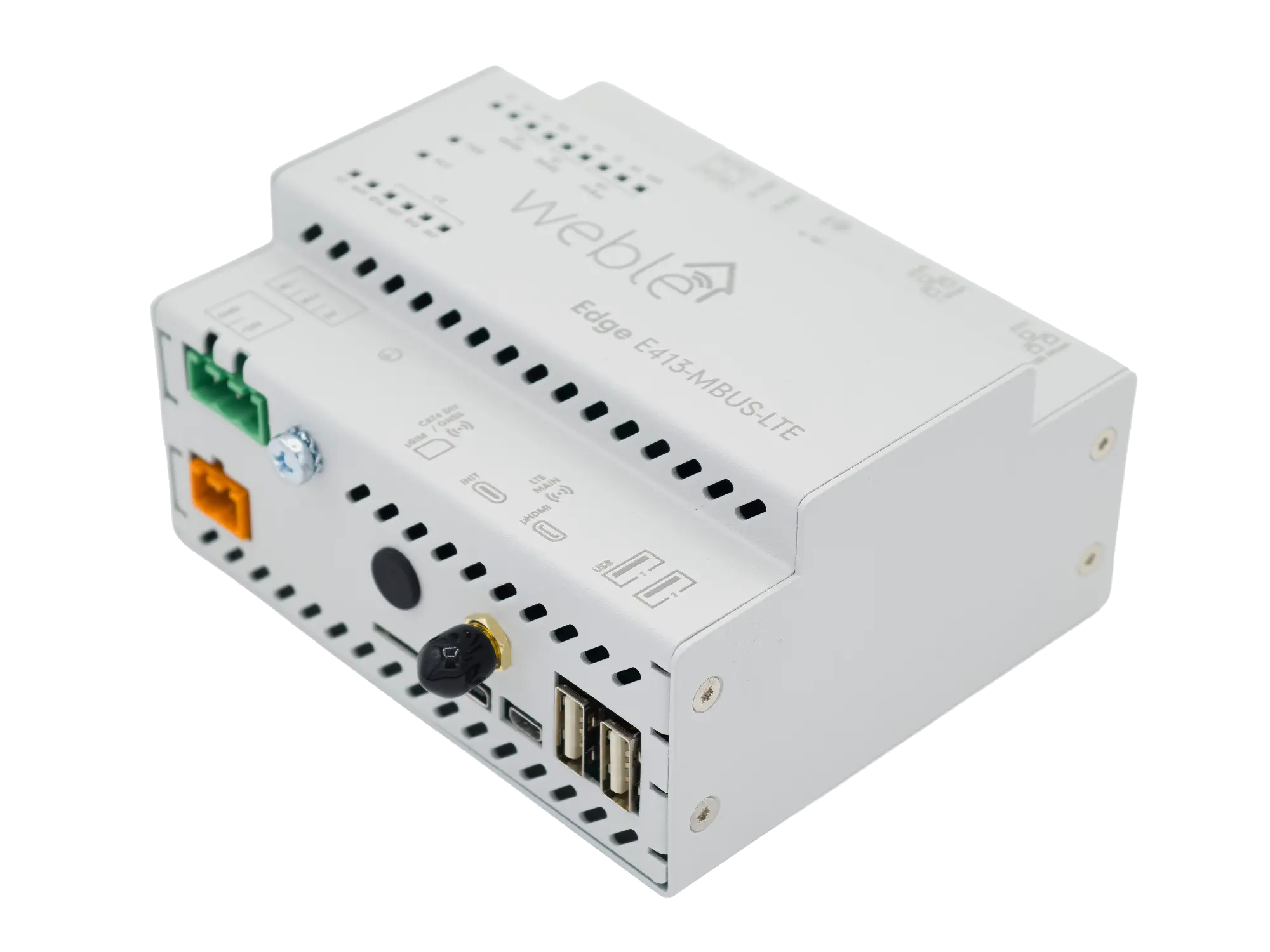

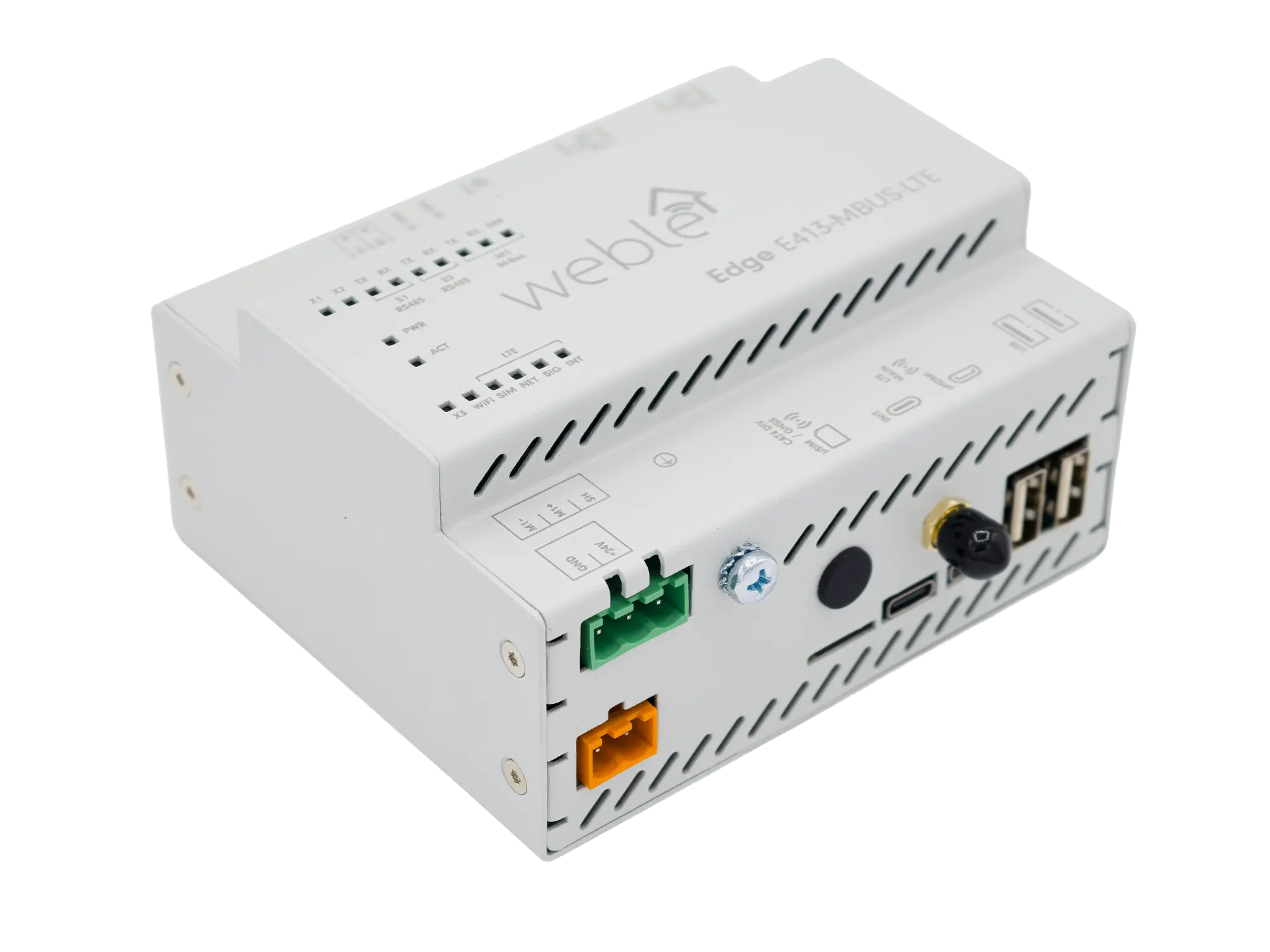

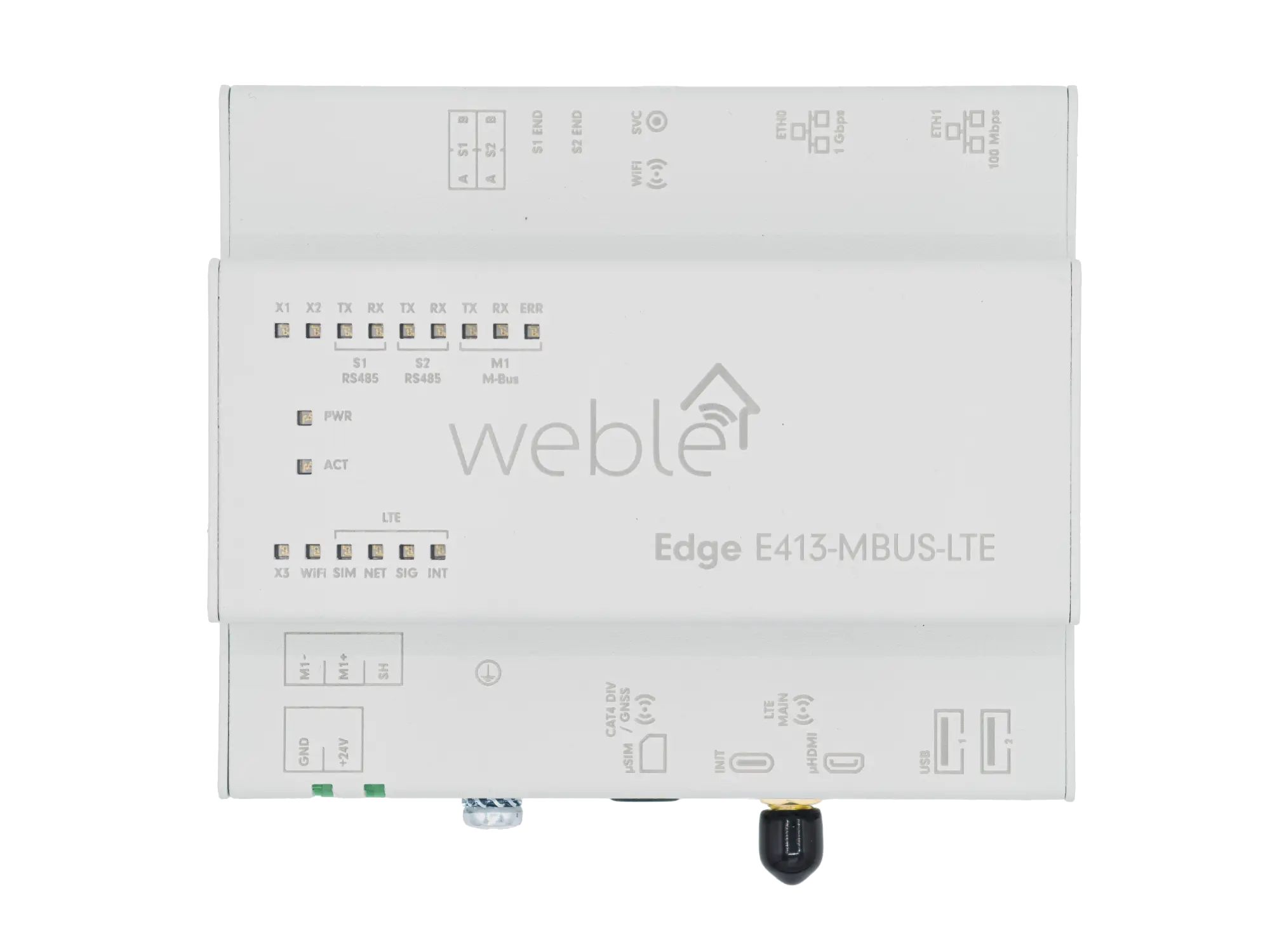

The Weble E413-MBUS-LTE is a programmable Ethernet / RS-485 Linux IoT gateway and logic controller with an integrated LTE Cat 1 modem (SIM card) and a wired M-Bus master for the direct connection of up to 60 meters (energy, water, gas, heat) with no external converter. Designed for industrial automation, building management, remote meter reading and remote sites without fixed connectivity. With ample computing power (quad-core Cortex-A72, 1 GB RAM), software openness and a favourable price, it serves as a data logger for SCADA/MES systems and cloud services — and as an easy way to modernise existing installations.
Communication interfaces
The E413-MBUS-LTE features two RS-485 interfaces for serial communication (Modbus, BACnet MS/TP) and two Ethernet ports (1 Gbit + 100 Mbit) for network and cloud connectivity. It embeds a dedicated M-Bus master (M1 terminal) to read up to 60 M-Bus meters directly, without an additional level converter. Its integrated LTE Cat 1 modem with SIM slot provides reliable cellular connectivity for remote sites with no fixed internet access.
